Solubility Modeling and Solvent Substitution

Motivation

Solubility of explosives and polymer binders is a major factor in the formulation, recrystallization, and in demilitarization processes. Solvents, co-solvents, and non-solvents are used to form molding powders, to change particle size distributions, and to separate HE from its binder.

Since these activities are not new endeavors, there are well-established processes and process fluids. However, the area of solubility is active for many reasons. There is a constant push to reduce or eliminate the use of toxic solvents with more benign alternatives. There is also a mandate to eliminate ozone-depleting solvents. And lastly, there are efforts to remove solvents from the process stream that leave behind corrosion-promoting chlorides.

The paint and polymer industries have led the way in solvent substitution and solvent blend prediction activities. In particular, the Hansen solubility parameters (HSPs) have proven themselves and are described in detail in the literature. The HSPs may be used to qualitatively rank solvents and blends in terms of their interaction with a given solute. Solutes and solvents that have similar HSPs are predicted to mix spontaneously. Conversely, if the HSPs are drastically different between solute and solvent, then there will be little interaction and limited mixing.

Dr. Williams group is capable of determining the Hansen solubility parameters for a solute, a surface, or a solvent and a papers related to these activities is found here.

The HNS paper was our first foray into determining the HSPs for a solute, and our methods have improved greatly since then. Unfortunately, much of our work in recent years has been under private contract and has not been published in public venues. Please call Dr. Williams at 936 294 1529 to discuss this area of his research if it interests you.

Solubility Modeling

Several group additivity methods have been developed to build up the Hansen solubility parameters from the various constituent chemical groups present in a solute. In an effort to produce a universal method, the developers of group additivity methods must include every possible chemical group that represents all bonding types. In an effort to increase the accuracy of these methods, the developers have introduced secondary structure arrangements. The drive towards universality has led to multiple ways to build a given solute, and non-obvious priority is given to certain bonding types and secondary structures.

Computational chemistry programs are now available to almost all chemical researchers, and these programs have delivered the universal ability to model solutes that the group additivity methods have sought to achieve. Dr. Williams is researching a new approach wherein a quantitative structure property relationship (QSPR) is developed that converts the structural parameters from a computational chemistry output file into the HSPs for the solute. This work was presented in 2009 at the ICT Faunhofer conference on energetic materials.

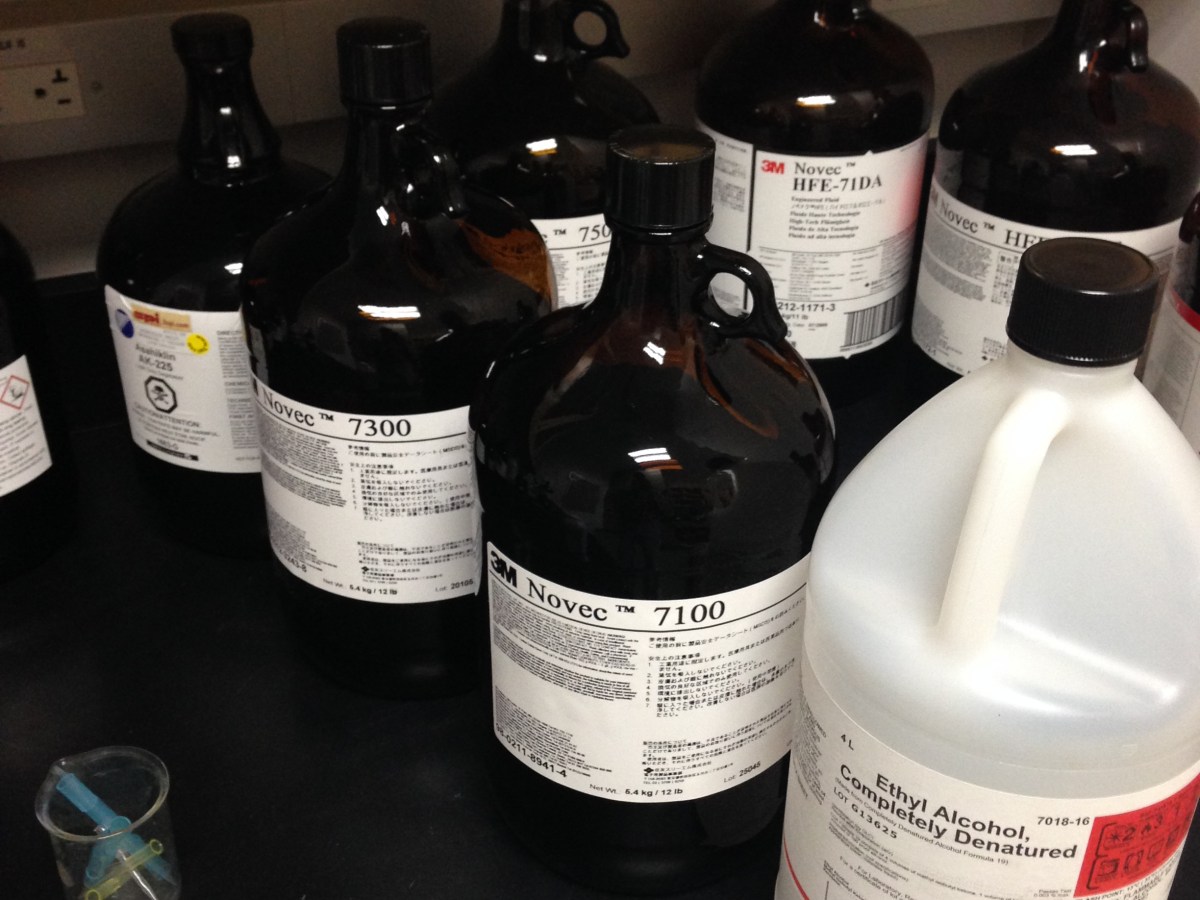

Solvent Substitution

The need to replace a particular solvent a difficult task. One desires a replacement solvent that matches the desirable characteristics and avoids the undesirable characteristics. There may not be a single solvent that is a suitable replacement, and one must begin exploring blended solvents. Typically, solvent blends are explored via trial and error, but this is not an efficient method. The Hansen solubility parameters offer a guide to solvent blend selection. Dr. Williams and Dr. Loft at SHSU have developed software that takes a large list of solvents, and predicts the 2-, 3-, and 4-component blends that target the HSPs of a particular solute. Several presentations and papers have been published outlining the solvent blend prediction procedures used by the Williams group. The most recent overview is given here.

Swell Testing and Chemical Compatibility

Highly crosslinked polymeric materials do not typically dissolve, but they do swell in particular solvents. This is desirable if the goal is to remove these materials. However, if one does not want the polymeric material or coating to change or swell, then this test represents a chemical compatibility test. Dr. Williams is interested in adhesive removal. The swell testing results in identification of the HSPs of the polymeric material, and solvent blends are predicted for removing the adhesives and residues from glass and metal surfaces.

Sessile Drop Contact Angle Measurement Methods

Look at the back of any can of paint, adhesive, or sealant and you will find that “Surface preparation is the most important step to ensure optimum performance of the coating.” While there are many methods for testing the condition of the surface, few are as portable, versatile, and compact as the sessile drop. Typically, one places a 5 to 15 microliter drop of deionized water on the surface and analyzes the drop shape to determine the contact angle that the edge of the drop makes with the surface. With this information, one can take advantage of the wealth of literature and patents that correlate contact angle with surface properties.

Cleanliness Verification via Contact Angle

Once a particular adhesive or contaminant is removed from a metal or glass surface, water is used as a probe of the surface energy. If all of the organic contamination has been removed, then the contact angle of a water drop will be low (20° – 30°). But what about the advancements in contact angle measurement? Is there an inexpensive way to enter this field, and how do I know if I have learned the technique?

  • Williams, D. L.*; Kuhn, A. T.; Amann, M. A.; Hausinger, M. B.; Konarik, M. M.; Nesselrode, E. I. Computerized Measurement of Contact Angles, Galvanotechnik, 101(11), 2502-2512, (2010).
  • Williams, D. L.*; Kuhn, A. T.; O’Bryon, T. M.; Konarik, M. M.; Huskey, J. E., Contact Angle Measurements Using Cellphone Cameras to Implement the Bikerman Method, Galvanotechnik, 102(8), 1718-1725, (2011).
  • Williams, D. L.* and O’Bryon, T. M. (Invited) Cleanliness Verification on Large Surfaces – Instilling Confidence in Contact Angle Techniques, Chapter 5, in Rajiv Kohli & K. L. Mittal (Eds.), Developments in Surface Contamination and Cleaning, vol. 6, Elsevier/William Andrew, Norwich, NY, (2013), pp 163 – 181.

Materials Compatibility

The integrity and safety of military munitions in long-term storage depends upon the compatibility of the explosive formulation materials, the packing material, and in some cases the storage containers.  Artificial aging and accelerated aging studies are used to reveal physical and chemical changes associated with material incompatibilities.

An artificial aging study evaluates material mixtures containing artificially large amounts of degradation products.  An accelerated aging study uses high temperature to accelerate the aging process.  The reactivity of the system may be further tested by the addition of humid air, oxygen, or other gases.

For example, nitrocellulose – a nitrated natural material – has a complicated degradation chemistry.  Discovered in 1832 by Henri Braconnot, the process for nitrating cotton fibers to make gun cotton was optimized by F. J. Otto in 1946.  Since then, nitrocellulose (NC) has been used in a variety of applications from military munitions to magic tricks.  The complex degradation chemistry of NC disfavors its use in long-shelf-life munitions.

Spectroscopic Signatures of Degradation and Environmental Damage

The stability of high explosives depends upon the molecular properties of the explosive, binder, stabilizer, and plasticizer.  Micro-infrared (IR) spectroscopy, Raman spectroscopy, nuclear magnetic resonance (NMR) spectroscopy, ion mobility spectrometry (IMS), and gas / liquid chromatography – mass spectrometry (LC-MS-MS, GC-MS) are all available to investigate changes to the molecular species present in an explosive formulation.

These various techniques are combined to determine the spectroscopic signatures that indicate compatibility issues and aging mechanisms.

The structure of a poly(ester urethane) block co-polymer that is used in some explosive formulations.

The spectral signatures of the nitrated polyurethane segment have been determined by synthesizing nitrated model compound fragments of the aromatic region of the polymer.  The model compound spectra (IR and Raman) were fully assigned using ab initio calculations (Gaussian Inc).  The quantitative method for analyzing the extent of nitration was determined with solvent-cast films and micro and macro-ATR-FTIR.  The micro-ATR-FTIR was able to see segregation and crystallization of the solvent cast films, and the macro-ATR-FTIR was insensitive to segregation and crystallization in the quantitation.  The image below shows the depressions made by the germanium ATR crystal.  The crystalline nitrated material is seen on the top-left half of the image, and the poly(ester urethane) matrix is seen on the lower-right half of the image.  Likewise, the FTIR spectrum of the crystalline region is shown on top and the spectrum of the polymer matrix is shown on bottom.

This work was published and can be found here.

  • Flaherty T. J., Timmons J.C., Wrobleski D. A., Orler E. B., Langlois D. A., Wurden, K. J., Williams, D. L.*,Infrared and Raman Spectral Signatures of Aromatic Nitration in Thermoplastic Urethanes, Applied Spectroscopy, 61(6), 608-612 (2007)

Color Changes

Another signal of chemical change is the color of the material.  Many colorless polymers become yellow over time as they are oxidized.  The chemical changes are concentrated at the surface of the material, so surface-sensitive reflectance and scattering techniques are favored for studying these phenomena.  IR, Raman, and reflectance visible spectroscopy techniques can be used to link the color change to specific chemical changes in the surface of the material.

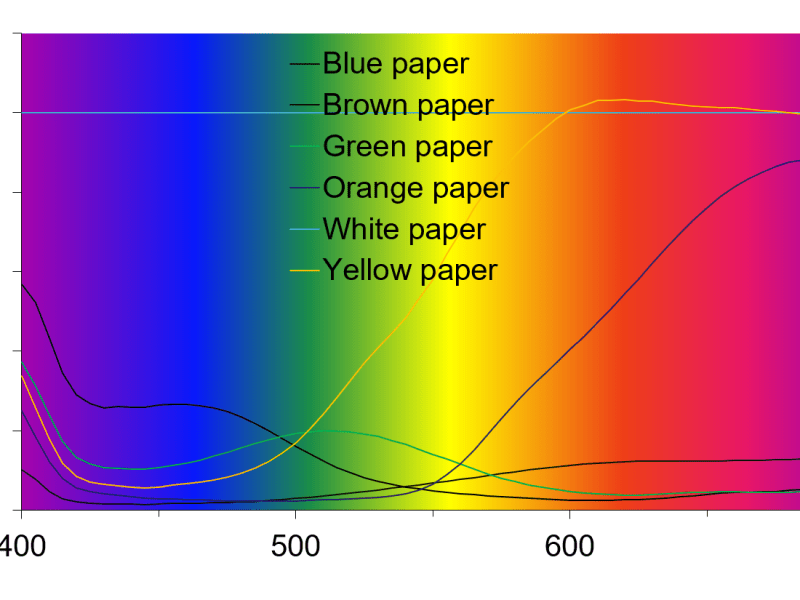

The study of color changes requires a specific definition of color, such as the CIE tristimulus values, the chromaticity coordinates, and the standard red-green-blue (sRGB) values.  For example, the chromaticity coordinates of potassium permanganate, nickel (II) chloride, cobalt (II) chloride, and copper sulfate are shown in the figure to the right.  Color changes in a material will create a measureable shift of the chromaticity coordinates.

The precise method has been published for transforming visible spectra to the CIE tristimuli, chromaticity coordinates and sRGB values.  A standard technique for simulating the specific color values for a molecule using semi-empirical modeling methods has also been published. Here are the references for both of these papers.

  • Williams, D. L.*, Flaherty, T. J., Jupe, C. L., Coleman, S. A., Marquez K. A., Stanton J. J., Beyond Lambda-Max: Transforming Visible Spectra into 24-bit Color Values, Journal of Chemical Education, (2007) 84, 1873-1877.
  • Williams, D. L.*, Flaherty, T. J., Al-Naslah, B. Beyond Lambda-Max Part 2: Predicting Molecular Color, Journal of Chemical Education, (2009), 86(3), 333-339.

Hydrometry and Surface Tensiometry

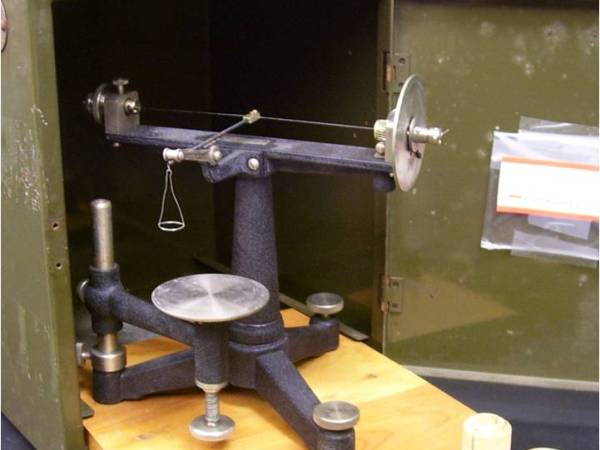

A temperature-controlled digital hydrometer / Du Nouy ring tensiometer was constructed in the Williams lab to measure the surface and interfacial tension of solvents and solvent blends used in the filled-polymer formulation process.  It has also been used to measure the surface tension during the curing process of Sylgard elastomeric polymer.

The details of this “home-built” instrument are available here.

  • Williams, D. L.*, Jupe C. L., Kuklenz K. D., Flaherty T. J., An Inexpensive, Digital Instrument for Surface Tension, Interfacial Tension, and Density Determination, Industrial & Engineering Chemistry Research,  47(12),  4286-4289, (2008).

Summary of publications related to these topics:

  • Williams, D. L. (Invited) Solving the Solvent Substitution Puzzle, Controlled Environments Magazine, 16(8), 10-14, (2013).
  • Williams, D. L.* and O’Bryon, T. M. (Invited) Cleanliness Verification on Large Surfaces – Instilling Confidence in Contact Angle Techniques, Chapter 5, in Rajiv Kohli & K. L. Mittal (Eds.), Developments in Surface Contamination and Cleaning, vol. 6, Elsevier/William Andrew, Norwich, NY, (2013), pp 163 – 181.
  • Williams, D. L.*; Kuhn, A. T.; O’Bryon, T. M.; Konarik, M. M.; Huskey, J. E., Contact Angle Measurements Using Cellphone Cameras to Implement the Bikerman Method, Galvanotechnik, 102(8), 1718-1725, (2011).
  • Williams, D. L.*; Kuhn, A. T.; Amann, M. A.; Hausinger, M. B.; Konarik, M. M.; Nesselrode, E. I. Computerized Measurement of Contact Angles, Galvanotechnik, 101(11), 2502-2512, (2010).
  • Williams, D. L.*; Kuklenz, K. D. Controlling the Particle-Size Distribution of Nitroanilines via the Hansen Solubility Parameters and Precipitation Paths, Proceedings of the 43rd Combustion Subcommittee Meeting of the Joint Army Navy NASA Air Force (JANNAF) Interagency Propulsion Committee, Enhanced Blast Phenomenology, La Jolla, (2009).
  • Williams, D. L.*; Kuklenz, K. D. A QSAR Model for Predicting Solvents and Solvent Blends for Energetic Materials, International Annual Conference of ICT, 40th(Energetic Materials), 2/1-2/11 (2009). (Corrections to the paper.) (Original paper.)
  • Williams, D. L.*; Kuklenz, K. D. A Determination of the Hansen Solubility Parameters of Hexanitrostilbene (HNS), Propellants Explosives and Pyrotechnics, 34, 452-457, (2009).
  • Kuklenz, K.D.; Williams, D. L.* An Evaluation of Modified IMS Swabs for the Screening of Oxidizers and Home-Made Explosives, Texas Journal of Science, 60(4), 299-308, (2008).
  • Williams, D. L.*, Jupe C. L., Kuklenz K. D., Flaherty T. J., An Inexpensive, Digital Instrument for Surface Tension, Interfacial Tension, and Density Determination, Industrial & Engineering Chemistry Research,  47(12),  4286-4289, (2008).
  • Williams, D. L.*, Flaherty, T. J., Al-Naslah, B. Beyond Lambda-Max Part 2: Predicting Molecular Color, Journal of Chemical Education, (2009), 86(3), 333-339..
  • Williams, D. L.*, Flaherty, T. J., Jupe, C. L., Coleman, S. A., Marquez K. A., Stanton J. J., Beyond Lambda-Max: Transforming Visible Spectra into 24-bit Color Values, Journal of Chemical Education, 84, 1873-1877, (2007)
  • Flaherty T. J., Timmons J.C., Wrobleski D. A., Orler E. B., Langlois D. A., Wurden, K. J., Williams, D. L.*,Infrared and Raman Spectral Signatures of Aromatic Nitration in Thermoplastic Urethanes, Applied Spectroscopy, 61(6), 608-612 (2007)
  • Lopez, E. P.*, Moddeman, W. E., Birkbeck, J. Williams, D.L.,  Benkovich M.G., Solvent Substitution – PART 2: The Elimination of Flammable, RCRA and ODC Solvents for Wipe Application, CleanTech Magazine, 4(10); 14-16 (2004)
  • Lopez, E. P.*, Moddeman, W. E., Birkbeck, J. Williams, D.L.,  Benkovich M.G., Solvent Substitution – PART 1: The Elimination of Flammable, RCRA and ODC Solvents for Wipe Application, CleanTech Magazine, 4(9); 16-19 (2004)
  • Williams, D. L., A Gage Repeatability and Reliability Study on the Use of Two Identical Gas Chromatography Systems to Perform Chemical Reactivity Testing, Pantex Technical Report, July, 2004.
  • Williams D. L., A Measurement System Evaluation of the Calibration of the Differential Scanning Calorimeter, Pantex Technical Report, April, 2004.
  • Williams D. L., Timmons J. C., Woodyard J. D., Rainwater K. A., Richardson B. R., Lightfoot J. M., Burgess C. E., and Heh J. L., UV-Induced Degradation Rates of 1,3,5-Triamino-2,4,6-Trinitrobenzene, Journal of Physical Chemistry A. 107(44); 9491-9494 (2003)
  • Williams D. L., Ashcraft R. W., A Technical Review of the Radiological Characterization of Nuclear Weapons at Pantex, Pantex Technical Report, April, 2003.

General Interest/Cultural Connections in Chemistry

  • White, R. C.*; White, J. H.; Williams, D. L.; Granic-White, M.; White, J. W. Discoveries in Chemistry and Textiles: The Development of a Two-Week Elective Chemistry Course in Germany and Paris, CAB Reviews: The Chemical Educator (2008), (3), 392-396.
